Nema17 Reducer
$36.00 | 1 table(Min.Order)
Introduction:

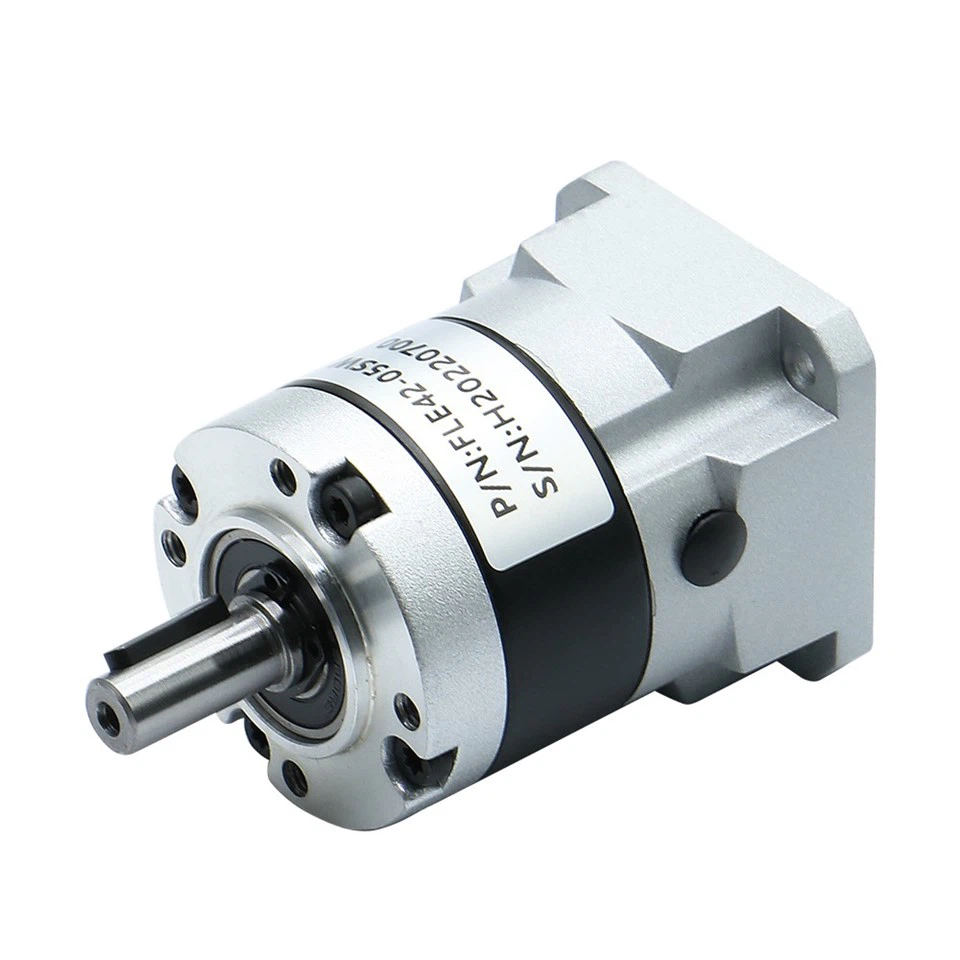

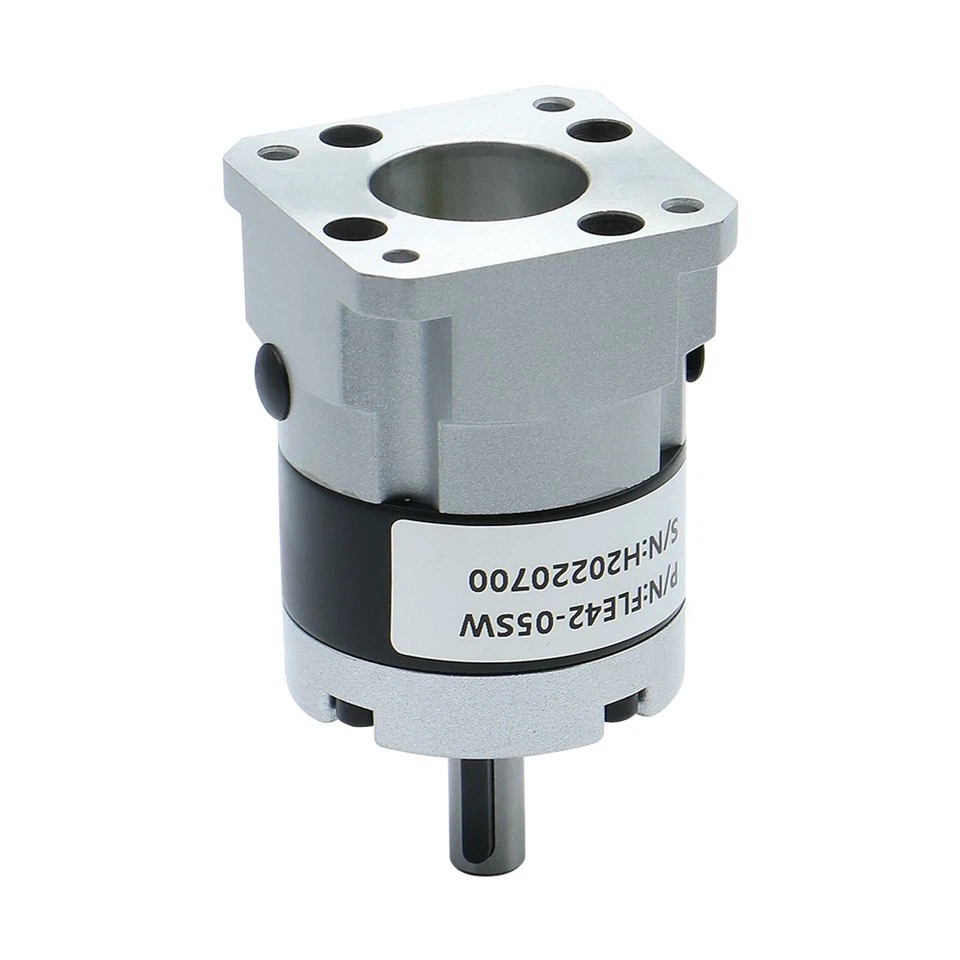

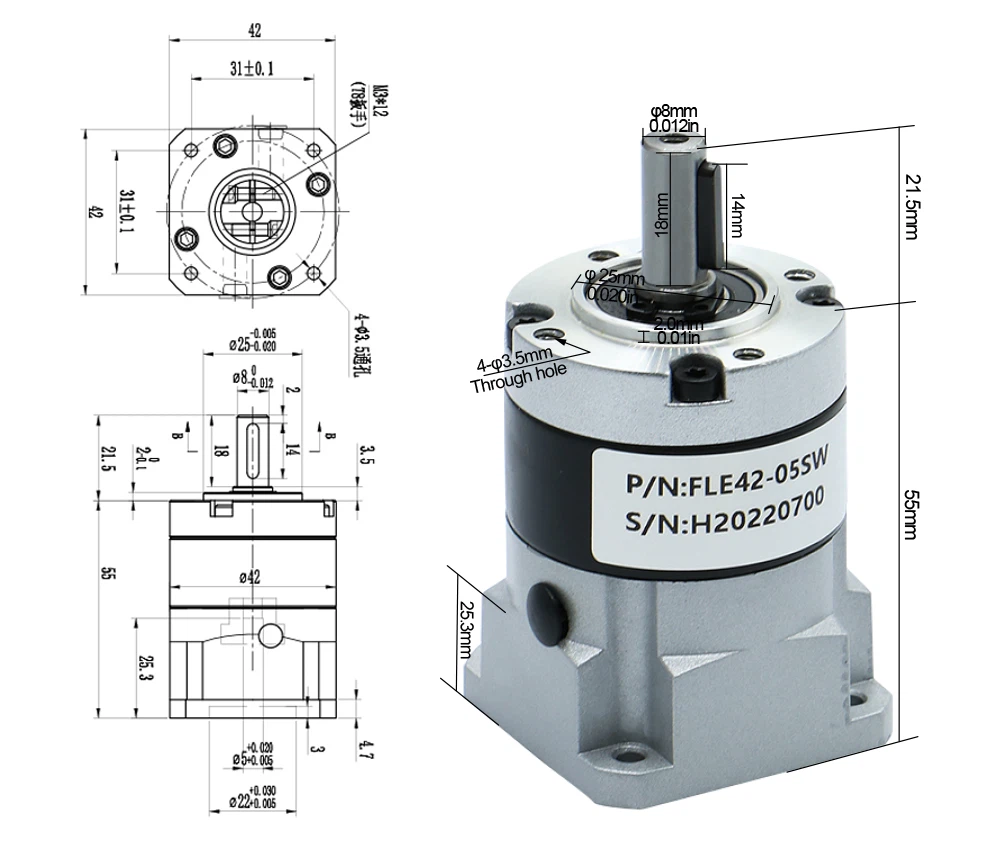

Nema17 planetary reducer, suitable for Nema17 stepper motor with axle diameter of 5mm. The output shaft diameter of the reducer is 8MM. The body length of the reducer with 10 speed ratio and below is 55mm, and the body length of the reducer with 10 speed ratio and above is 66mm. In addition, there are more precise styles with 10 speed ratios and below, the precision is less than or equal to 15arcmin, and the accuracy of the reducer with more than 10 speed ratios is less than or equal to 20arcmin.
Reducer parameters:
Reducer parameters:
| Model number | FLE42-L1SW | Backlash | ≤30 arcmin |
| Speed ratio | 4/5/10 | Efficiency | 90% |
| Nominal Output Torque | 9/9/5 | Noise | ≤55 |
| Sudden Stop Torque | 18/18/10 | Weight | 0.29kg |
| Nominal Input Speed | 1000RPM | Protection Level | IP54 |
| Max Input Speed | 2000RPM | Motor Dimensions | φ5-24/φ22-2/F31-M3 |
| Average Life Span | 20000h | Working Temperature | -20°~+150° |
| Radial Force | 300N | Axial Force | 100N |
| Model number | FLE42-L2SW | Backlash | ≤45 arcmin |
| Speed ratio | 20/25/50/100 | Efficiency | 80% |
| Nominal Output Torque | 10 | Noise | ≤55 |
| Sudden Stop Torque | 20 | Weight | 0.38kg |
| Nominal Input Speed | 1000RPM | Protection Level | IP54 |
| Max Input Speed | 2000RPM | Motor Dimensions | φ5-24/φ22-2/F31-M3 |
| Average Life Span | 20000h | Working Temperature | -20°~+150° |
| Radial Force | 300N | Axial Force | 100N |
