Motor Shielded Cable

Product Introduction

Motor shielded cable is a transmission line that uses a metal mesh braid to wrap the signal line. It uses aluminum foil and tinned copper braided mesh, so it has excellent electromagnetic shielding performance. This kind of braided mesh can guide external interference signals to the ground to protect the signals inside the cable from external interference and prevent the wires from radiating electromagnetic energy outwards. Based on the above functions, this cable can achieve less transmission signal loss, allowing for more precise operation. It can be used in handheld devices, machine tools, woodworking machinery, engraving machines and other coordinate machinery, robotic arms, manipulator guide rails, mechanical linkage circulation device reciprocators, elevators and other reciprocating mechanism cycle drag devices. This cable can still work normally within the temperature range of -30℃ - 105℃.

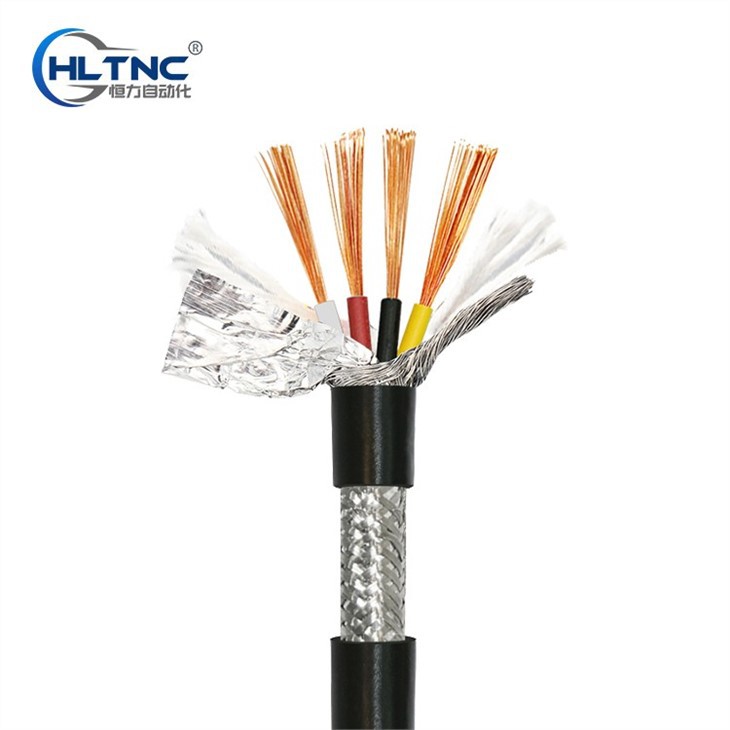

Structure

The shielding layer is generally conductive cloth, braided copper mesh or copper (aluminum) platinum.

1. Ordinary: insulation layer + shielding layer + wire.

2. Advanced: insulation layer + shielding layer + signal wire + shielding layer ground wire.

Features

1. Excellent sealing performance

This motor shielded cable uses a special PVC compound outer layer, so it has good sealing performance and can effectively prevent moisture, foreign matter and external interference inside the cable.

2. Anti-electromagnetic interference

This cable is designed with excellent aluminum foil and tinned copper braiding, which means it can well resist electromagnetic interference and ensure the accuracy and stability of the device's signal transmission.

3. Stable electrical conductivity

Based on multiple strands of ultra-fine fine-tuned oxygen-free copper wires as conductors, this cable's electrical conductivity is stable and reliable, ensuring the stability of high-speed transmission.

4. Strong wear resistance

The filling of this cable is stretch cotton rope, which can provide comprehensive protection for the internal conductors to effectively resist wear and friction during long-term use of the cable.

5. Safe and reliable

These motor shielded cables have gone through our rigorous testing before leaving the factory and have passed a number of international certifications, so they are very safe.

Product Specification

Our Company

Packing, Storage, Handling and Transportation

Why choose us?

• Our Motor and Driver products come with a warranty.
• We believe that customers are the cornerstone of enterprise development, and making internal and external customers satisfied is the starting and ending point of all work.
• We are committed to delivering excellence.
• Our Motor Shielded Cable is the combination of new technologies, which not only enable enterprises to achieve energy saving and consumption reduction, but also improve production efficiency.
• Our team is passionate about what we do.
• Our company provides users around the world with more advantageous and high-quality equipment. In order to achieve this goal, we have invested countless time in product development, testing and evaluation.
• We are dedicated to building long-term customer relationships.
• We are thankful, brave, industry to serve the country, dedication to society, and promote the enterprise and employees in the development process, actively play a backbone and role.
• We offer affordable Motor and Driver products.
• Our company's own brand Motor Shielded Cable have been widely recognized and welcomed by most well-known customers.
