The SCT1 speed controller is a stepper motor speed regulator, applicable to small and medium-sized automated equipment such as logistics, textile and winding machinery. It operates on DC 24V–70V power supply and matches stepper motors with 42–86 flanges. Equipped with a 4-digit digital tube and adjustment knob, it allows speed and torque regulation. It supports forward / reverse and start-stop control via panel buttons or IO signals, features overvoltage and undervoltage protection, and delivers low vibration and low noise operation.

Send Inquiry

Add To Inquiry

Product Introduction

I. Product Introduction

The SCT1 speed controller is a stepper motor speed regulator, applicable to small and medium-sized automated equipment such as logistics, textile and winding machinery. It operates on DC 24V–70V power supply and matches stepper motors with 42–86 flanges. Equipped with a 4-digit digital tube and adjustment knob, it allows speed and torque regulation. It supports forward / reverse and start-stop control via panel buttons or IO signals, features overvoltage and undervoltage protection, and delivers low vibration and low noise operation.

II. Product Description & Features

1. Working Principle

Adopting a new-generation 32-bit DSP main control chip, it receives control signals from panel toggle switches or external IO ports and outputs driving current to operate 2-phase open-loop stepper motors. Users can adjust output current level and speed values via the knob to modify motor torque and rotational speed. A built-in voltage detection circuit monitors power input in real time and triggers alarm protection upon abnormalities. The MINI USB debugging port enables users to rewrite underlying parameters including maximum current, top speed and motor model via upper computer software, realizing precise open-loop regulation of speed and torque.

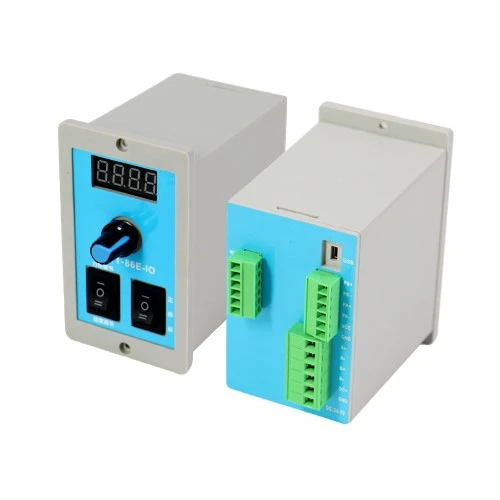

SCT1 Speed Regulator

2. Product Advantages

The SCT1-86 is optimized to address common drawbacks of competing stepper speed controllers in heat dissipation, compatibility, parameter tuning, control modes, circuit protection, parameter range and after-sales service.

High compatibility: A single driver supports all 2-phase stepper motors with 42/57/60/86 flange sizes.

(1)Wide input voltage range of DC 24–70V, compatible with universal DC switching power supplies for diverse power supply scenarios.

(2)Built-in 4-digit digital tube for visual parameter adjustment, enabling fast on-site setup without a computer.

(3)Dual control modes: Panel switches or PLC IO signals for start-stop and direction switching, suitable for manual prototype testing and automated production lines.

(4)Low vibration and low noise design, with dual overvoltage and undervoltage fault protection for stable operation.

(5)Compact structure with side-mounted heat dissipation design for easy installation and outstanding cost performance.

3. Matching Equipment

(1)42/57 small stepper motors for light-load equipment;

(2)86-flange stepper motors for winding machines, gate barriers, logistics conveyors and textile machinery;

(3)Equipment requiring on-site manual speed regulation without PLC deployment;

(4)Automated production lines with PLC integration, supporting IO signal access for automatic start, stop and direction control.

Speed Regulator Wiring Diagram

III. Matching Accessories & Application Scenarios

1. Matching Accessories

Compatible with 2-phase stepper motors of 42/57/60/86 flange sizes. Matched with DC 24–70V switching power supplies, PLC control boards and shielded signal cables. Widely deployed in intelligent logistics, textile, winding and gate barrier equipment.

2. Application Scenarios

(1)Intelligent Warehousing & Logistics

Applied to sorting conveyor lines, miniature AGVs, parcel labeling machines and lifting transfer stations in overseas warehouses. Its adjustable wide-range torque and speed together with dual control modes support manual prototype debugging and connection to overseas PLC automated lines. Low vibration and quiet operation suit long-duration continuous warehouse operation, while the wide DC 24–70V voltage input adapts to various overseas DC power supply solutions.

(2)Textile & Sewing Machinery

Used for computerized embroidery machines, carpet tufting machines and yarn winding tension control structures. Real-time torque adjustment via the knob stabilizes yarn tension; one-click switching supports 42/57/86 motors for different machine models. The DSP algorithm reduces vibration to prevent fabric stitching deviation, and dual voltage protection copes with voltage fluctuations in workshop environments.

(3)Small Winding & Packaging Equipment

Coil winding machines, wire winding devices, mini pillow packing machines and filling traction mechanisms demand stable adjustable torque. The 0–6000mA full-range current covers light and heavy winding loads, and the digital tube visual tuning allows overseas technicians to modify parameters rapidly without computers.

(4)Gate Barriers & Automatic Doors (Supermarkets, Factories & Parking Lots in Europe & America)

Automatic access barriers, dust-proof warehouse rolling shutters and outdoor road gates. Outdoor equipment faces severe voltage fluctuations, mitigated by the wide voltage input and dual voltage protection; fault codes enable quick troubleshooting. Adjustable holding current allows manual gate pushing after power cut, ideal for unattended outdoor operation.

(5)Small Custom Automation & 3C Processing Equipment

Simple dispensing machines, miniature engraving machines, basic PCB conveyor tables and component assembly tooling. Universal compatibility with all 42–86 flange stepper motors cuts inventory costs for overseas equipment manufacturers. The MINI USB port supports batch parameter configuration via upper computer software for mass export equipment commissioning.
