Saw Blade Spindle

I.Product Overview

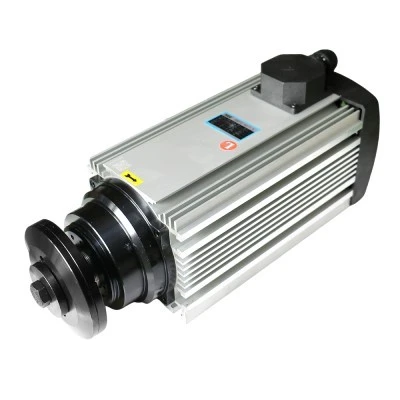

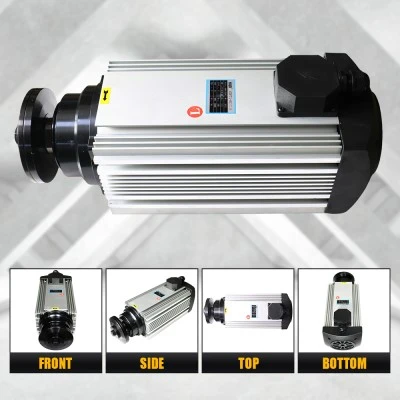

GDF716Z7.5 is an air-cooled grease-lubricated high-speed dedicated Saw Blade Spindle. Adopting air cooling heat dissipation and bearing grease lubrication, it requires low maintenance. With 7.5kW high power, rated speed of 6000r/min and frequency of 100Hz, it supports dual voltage of 220V/380V to match different power supply conditions. The whole machine features stable durability and compact structure for easy equipment integration.

It supports forward and reverse rotation, adopts T-slot mounting and excellent dynamic balance performance for simple installation and stable operation. Matched with saw blade cutting mechanisms for wood and profile cutting processing, this spindle must be used together with a matched frequency converter.

II.Product Introduction & Features

(1) Working Principle

The saw blade spindle is a variable-frequency high-speed motor spindle produced by Lishui City Hengli Automation Technology Co.,LTD. Driven by variable-frequency power supply of 100Hz output from a frequency converter, it converts electric energy into rotary mechanical energy. The output end of the spindle clamps saw blades, and the high-speed rotation of the motor spindle drives saw blades to finish cutting.

Bearings are lubricated with grease, and the shell dissipates heat via air cooling. The whole spindle undergoes dynamic balance calibration with full key structure to guarantee stable rotation at high speed, and both forward and reverse rotation modes are available.

(2) Product Advantages

1.High Power & High Rigidity

7.5kW power and constant 6000r/min speed provide sufficient sawing torque for ultra-smooth cutting surfaces. The rigid body resists cutting impact and suppresses vibration for stable cutting performance.

2.Dual Voltage Compatibility

Two wiring modes (△220V / Y380V) fit power supply conditions of different factories.

3.Low Maintenance Cost

Air cooling design eliminates water cooling circulation systems; bearing grease lubrication removes complex water circuit maintenance work.

4.Easy Installation

T-slots at the bottom of the shell cooperate with national standard T-nuts for fast fixing. Factory pre-finished dynamic balance reduces vibration and running noise.

5.Universal Matching & Low Supporting Cost

Compatible with mainstream sawing working conditions, easy for new machine assembly and old equipment renovation.

(3) Specification & Model Selection

This spindle is suitable for medium and heavy-load sawing conditions and must be driven by a frequency converter of corresponding power. Choose delta connection for 220V on-site power supply and star connection for 380V. The whole spindle weighs 31kg, so equipment frame bearing capacity must be considered during frame design. It is designed for continuous operation at 6000r/min and shall not run at overspeed.

III.Matching Parts & Application

(1) Supporting Products

Function: Equipped with saw blades to cut, blank and trim wood, aluminum profiles and plates, suitable for renovation of all kinds of cutting machine tools and new machine assembly.

It shall be driven by a frequency converter of matched specifications. National standard T-nuts are used for spindle fixing. Saw blades with matching sizes can be installed. Wiring can adopt star or delta connection according to local power supply, with power cables configured as required. Widely applicable to customized cutting machine assembly and equipment renovation projects.

(2) Application Scenarios

1.Mainly used for woodworking, aluminum profile processing and plate equipment renovation. Target customers include complete machine manufacturers, small processing factories, equipment renovators and second-hand machinery refurbishment vendors.

2.Woodworking (Largest Application Share)

Cutting and blanking of panel furniture boards; wood cutting, edge trimming and tenon cutting for sliding table saws in European and American workshops; 45° angle cutting of wooden doors and windows. Overseas wood machinery manufacturers purchase in bulk for original equipment installation, and large quantity of spindles are used for old machine replacement.

3.Aluminum & Non-ferrous Metal Processing

Cutting of aluminum door & window profiles, corner codes, curtain wall decorative aluminum materials and thin copper sheets. Customers value torque and dynamic balance to reduce burrs on cutting surfaces.

4.Composite & Plastic Boards

Cutting and edge trimming of PVC, acrylic and artificial boards, widely adopted by advertising and building material factories.

5.Equipment Renovation & Repair

Motor upgrading and replacement of old machines, additional sawing function installation on equipment; maintenance and integration suppliers purchase spindle + frequency converter as complete sets.

6.Non-standard Special Machinery

Online cutting on production lines and cutting stations of automated production lines.

Not Applicable: Heavy-duty thick steel cutting. This spindle fits wood, aluminum and plastic processing only.

IV. Certificates & Compliance

V. Packaging & Logistics

Standard export wooden case packaging with shockproof foam inside to protect the Saw Blade Spindle. Multiple logistics channels for sea freight, air freight and express delivery are available to serve overseas customers.

VI. Contact Us

Manufacturer: Lishui City Hengli Automation Technology Co.,LTD

Welcome global machinery distributors, equipment factories and processing plant owners to inquire, sample and place bulk orders for our Saw Blade Spindle and supporting frequency converters.
