As a supplier of motors and drivers, I've encountered numerous challenges in ensuring the longevity and reliability of motor drivers. One of the most prevalent issues is voltage spikes, which can cause significant damage to these critical components. In this blog post, I'll share some effective strategies to protect a motor driver from voltage spikes, drawing on my experience in the industry.
Understanding Voltage Spikes
Voltage spikes are sudden, short-duration increases in voltage that can occur in an electrical circuit. They can be caused by a variety of factors, including lightning strikes, power surges, inductive loads, and switching events. These spikes can range from a few volts to several thousand volts and can last from a few nanoseconds to several milliseconds.
Motor drivers are particularly vulnerable to voltage spikes because they often operate in environments where electrical noise and transient events are common. When a voltage spike occurs, it can exceed the maximum voltage rating of the motor driver, causing damage to its internal components such as transistors, integrated circuits, and capacitors. This can lead to malfunctions, reduced performance, and even complete failure of the motor driver.
Strategies for Protecting Motor Drivers from Voltage Spikes
1. Use Surge Protectors
Surge protectors are devices designed to divert excess voltage away from sensitive equipment, such as motor drivers. They work by detecting voltage spikes and providing a low-impedance path to ground for the excess current. There are several types of surge protectors available, including metal oxide varistors (MOVs), gas discharge tubes (GDTs), and transient voltage suppressors (TVSs).
MOVs are the most commonly used surge protectors in motor driver applications. They are made of a ceramic material that has a non-linear resistance characteristic. When the voltage across an MOV exceeds its breakdown voltage, its resistance decreases rapidly, allowing it to conduct a large amount of current. This diverts the excess voltage away from the motor driver, protecting it from damage.
GDTs are another type of surge protector that can be used to protect motor drivers. They consist of a gas-filled tube with two electrodes. When a voltage spike occurs, the gas inside the tube ionizes, creating a conductive path between the electrodes. This allows the excess current to flow through the tube and to ground, protecting the motor driver.
TVSs are semiconductor devices that are designed to clamp the voltage across a circuit to a safe level. They have a fast response time and can handle high levels of current. TVSs are often used in conjunction with MOVs or GDTs to provide additional protection against voltage spikes.
2. Install Filter Capacitors
Filter capacitors are used to smooth out the voltage waveform and reduce the impact of voltage spikes. They work by storing electrical energy and releasing it when the voltage drops. This helps to maintain a stable voltage level across the motor driver, reducing the risk of damage from voltage spikes.
There are two main types of filter capacitors: electrolytic capacitors and ceramic capacitors. Electrolytic capacitors have a high capacitance value and are suitable for filtering low-frequency voltage spikes. Ceramic capacitors, on the other hand, have a low capacitance value and are suitable for filtering high-frequency voltage spikes.
When selecting filter capacitors for a motor driver application, it's important to consider the capacitance value, voltage rating, and temperature coefficient of the capacitors. The capacitance value should be chosen based on the specific requirements of the motor driver, while the voltage rating should be higher than the maximum voltage that the motor driver is expected to encounter.
3. Implement Isolation Techniques
Isolation techniques are used to separate the motor driver from the power source and other electrical components. This helps to prevent voltage spikes from propagating through the electrical system and damaging the motor driver. There are several types of isolation techniques available, including transformer isolation, opto-isolation, and capacitive isolation.
Transformer isolation is the most common type of isolation technique used in motor driver applications. It involves using a transformer to transfer electrical energy from the power source to the motor driver without a direct electrical connection. This helps to isolate the motor driver from voltage spikes and other electrical noise in the power source.
Opto-isolation is another type of isolation technique that uses an optocoupler to transfer electrical signals between two circuits without a direct electrical connection. Optocouplers consist of an LED and a phototransistor. When an electrical signal is applied to the LED, it emits light, which is then detected by the phototransistor. This allows the electrical signal to be transferred between the two circuits without a direct electrical connection, providing isolation from voltage spikes and other electrical noise.
Capacitive isolation is a relatively new type of isolation technique that uses a capacitor to transfer electrical energy between two circuits without a direct electrical connection. Capacitive isolation is suitable for high-frequency applications and can provide excellent isolation from voltage spikes and other electrical noise.
4. Design for Proper Grounding
Proper grounding is essential for protecting motor drivers from voltage spikes. Grounding provides a low-impedance path for the excess current to flow to ground, reducing the risk of damage to the motor driver. When designing a motor driver system, it's important to ensure that all components are properly grounded and that the grounding system has a low impedance.
There are several types of grounding systems available, including single-point grounding, multi-point grounding, and floating grounding. Single-point grounding is the most common type of grounding system used in motor driver applications. It involves connecting all components to a single ground point, which helps to minimize the potential for ground loops and electrical noise.
Multi-point grounding is another type of grounding system that can be used in motor driver applications. It involves connecting all components to multiple ground points, which helps to reduce the impedance of the grounding system. However, multi-point grounding can also increase the potential for ground loops and electrical noise, so it should be used with caution.
Floating grounding is a type of grounding system that involves isolating the motor driver from the ground. This can be useful in some applications where there is a risk of electrical noise or interference from the ground. However, floating grounding can also increase the risk of electrostatic discharge (ESD) and other electrical problems, so it should be used with caution.
5. Select High-Quality Components
Selecting high-quality components is essential for protecting motor drivers from voltage spikes. When choosing components for a motor driver application, it's important to consider the voltage rating, current rating, and temperature coefficient of the components. The voltage rating should be higher than the maximum voltage that the motor driver is expected to encounter, while the current rating should be sufficient to handle the maximum current that the motor driver is expected to draw.
In addition to the voltage and current ratings, it's also important to consider the temperature coefficient of the components. The temperature coefficient is a measure of how the performance of a component changes with temperature. Components with a low temperature coefficient are less likely to be affected by temperature changes, which can help to improve the reliability and performance of the motor driver.
Conclusion
Protecting a motor driver from voltage spikes is essential for ensuring its longevity and reliability. By using surge protectors, installing filter capacitors, implementing isolation techniques, designing for proper grounding, and selecting high-quality components, you can significantly reduce the risk of damage to your motor driver from voltage spikes.

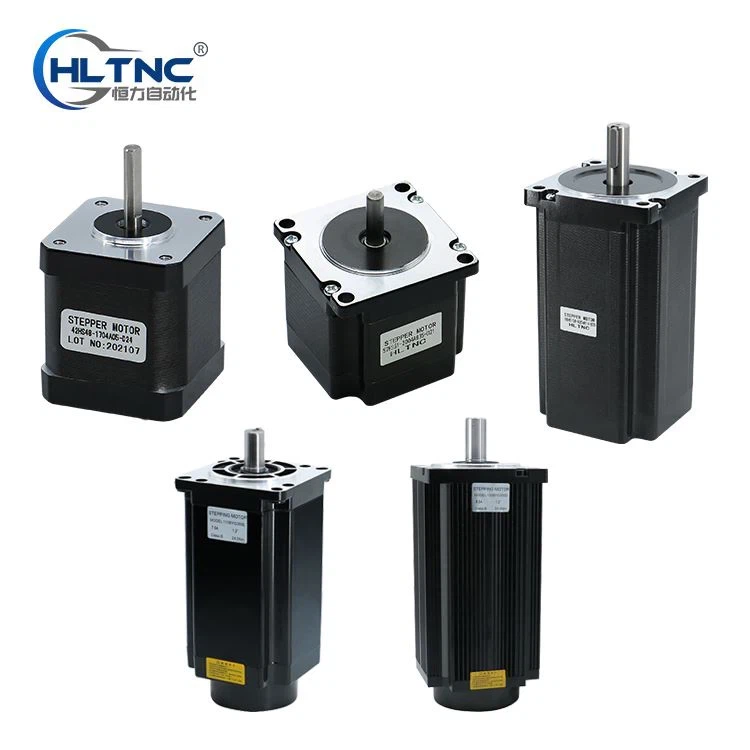

As a supplier of motors and drivers, we offer a wide range of products that are designed to withstand voltage spikes and other electrical challenges. Our Electronic Pulse Receiver, High Power Servo Motor, and Permanent Magnet Stepper Motor are all built with high-quality components and advanced protection features to ensure reliable performance in even the most demanding environments.
If you're interested in learning more about our products or need assistance with protecting your motor drivers from voltage spikes, please don't hesitate to contact us. We'd be happy to discuss your specific requirements and help you find the best solutions for your application.
