Linear Motion Module
This linear motion module is manufactured by us for stepper motors for nema23 and nema34, or servo motors for nema24 and nema32. The effective travel length of the linear motion module can be customized between 100mm and 2500mm. The maximum load capacity of this linear motion module is 150kg horizontally and 50kg vertically. We can also provide you with related accessories, such as couplings or motors.
Send Inquiry
Add To Inquiry
Product Introduction
Product brief introduction
1.G10 grade GCR15 steel ball
2.95% dustproof,lubrication,noise reduction
3.GCR53 high carbon chromium bearing steel
4.The width of the slide is 150mm.
5.The ball screw is SFU1605/1610 of precision C7
6.The length of the effective stroke: between 100~2500mm can be customized

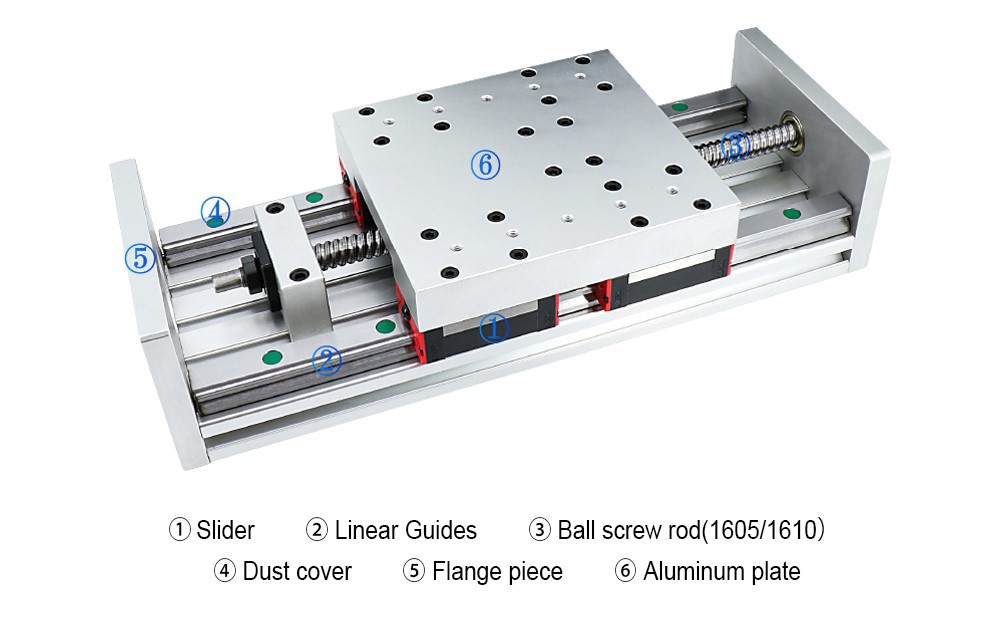

Product composition

①Slider
②Linear guide
③Ball screw rod(16050/1610)
④Dust cover
⑤Flange piece
⑥Aluminum plate

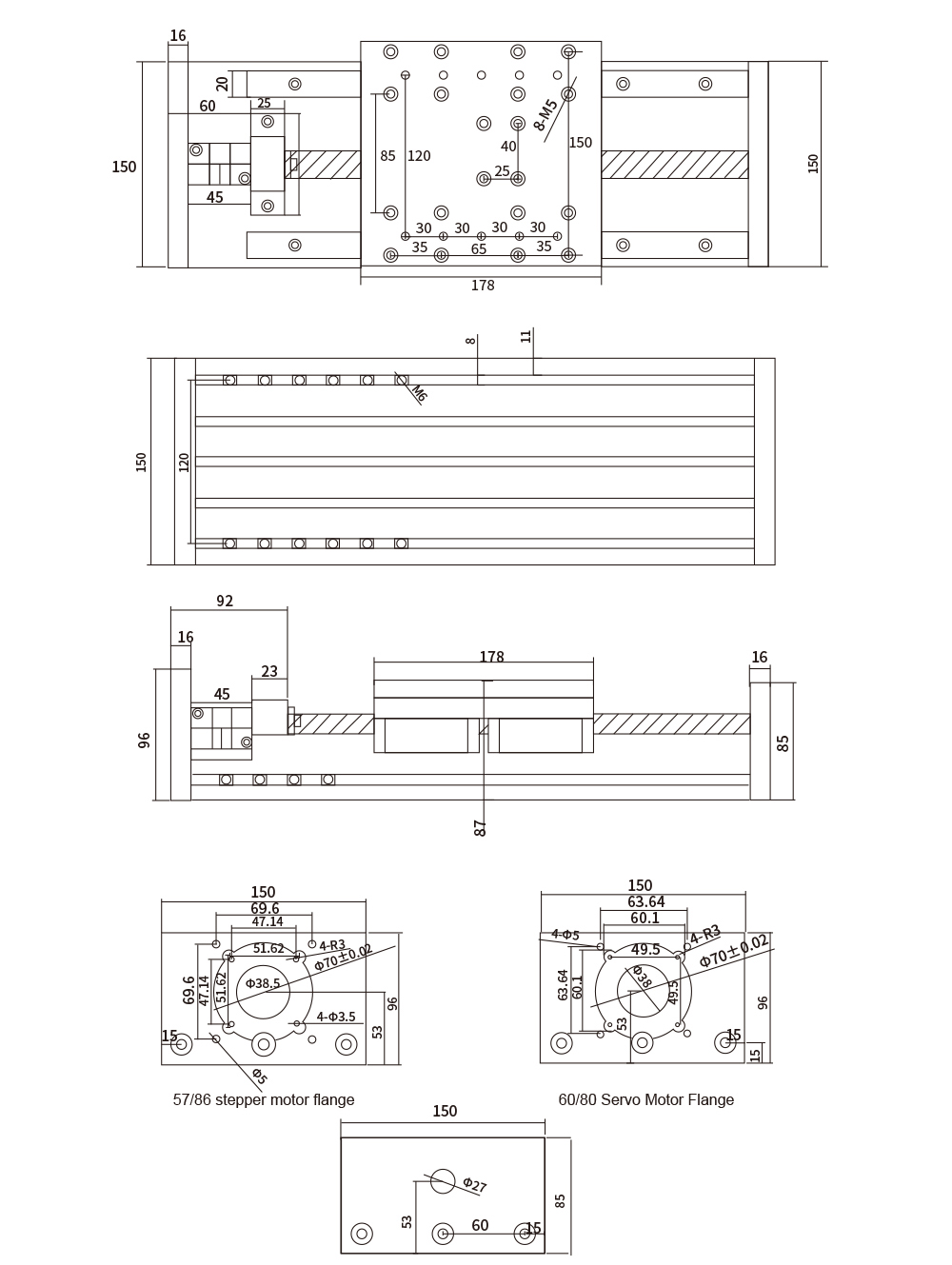

Product size(mm)

Product parameter
| Parameter | ||||||||||||
| Effective stroke(MM) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600+ | |
| Total length(MM) | 310+ | 360+ | 410+ | 460 | 510 | 560 | 610 | 660 | 710 | 760 | 810+ | |
| Total Height(MM) | 87 | |||||||||||
| Positioning accuracy | Every 300mm is 0.03mm-0.05mm | |||||||||||
| Maximum load(mm) | Level | 150kg | ||||||||||
| Vertical | 50kg | |||||||||||
