Black Aluminium Plate

Our black aluminium plate is mainly used for the upper part of the slide table, or installed at both ends of the aluminum profile.Black aluminium plate is suitable for SBRR16, SFU1605, HGH20CA, or SBR20 slide.Black aluminium plate can be as thick as 12mm, and the thinnest one is 6mm. We also offer a variety of other slides.

Send Inquiry

Add To Inquiry

Product Introduction

Brief introduction：

Product name：Aluminum plate for sliding table
Material: Aluminum
Finish: black anodized

Specifications:

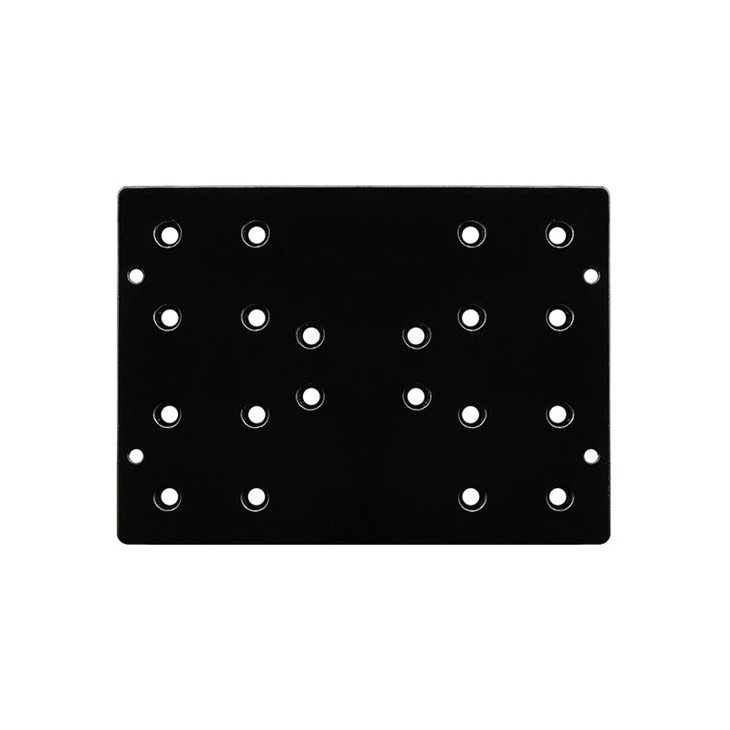

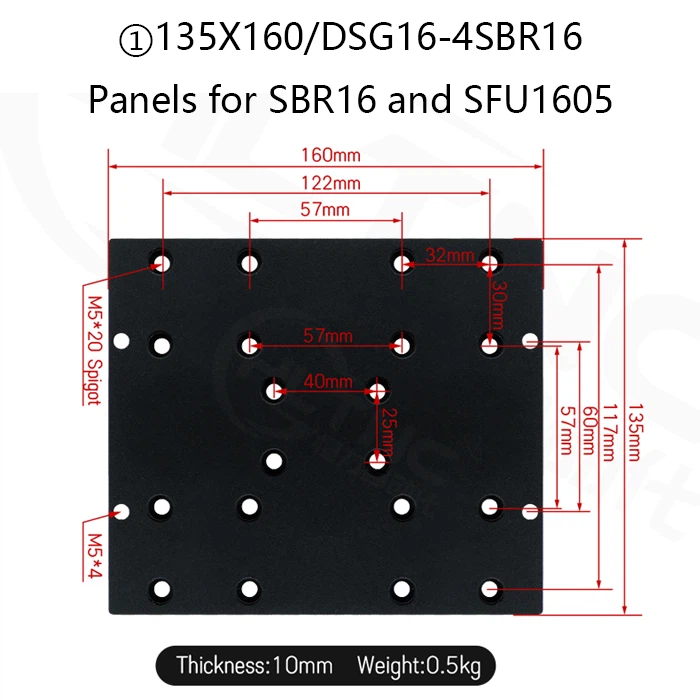

1. Size: 135X160mm, thickness is 10mm, suitable for optical shaft SBR16 and ball screw SFU1605

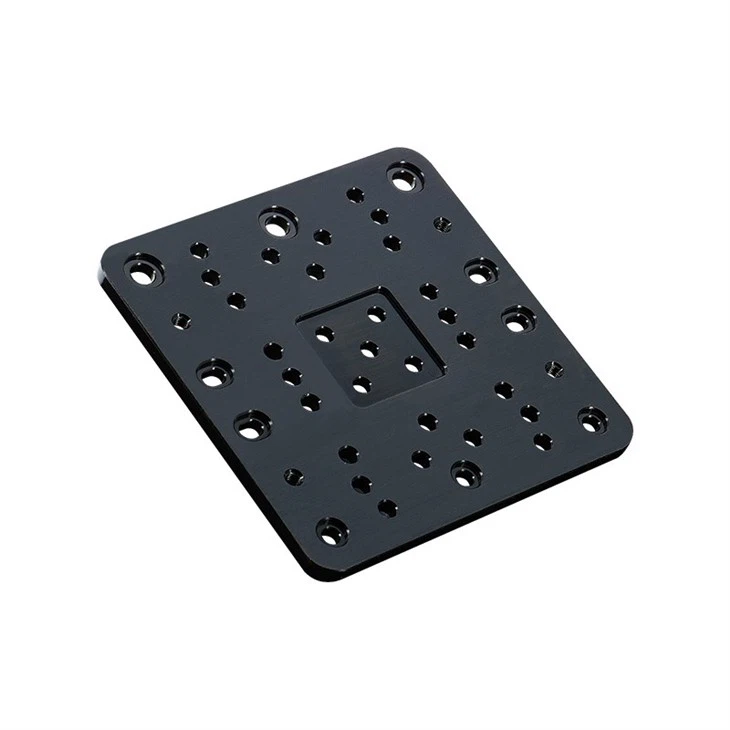

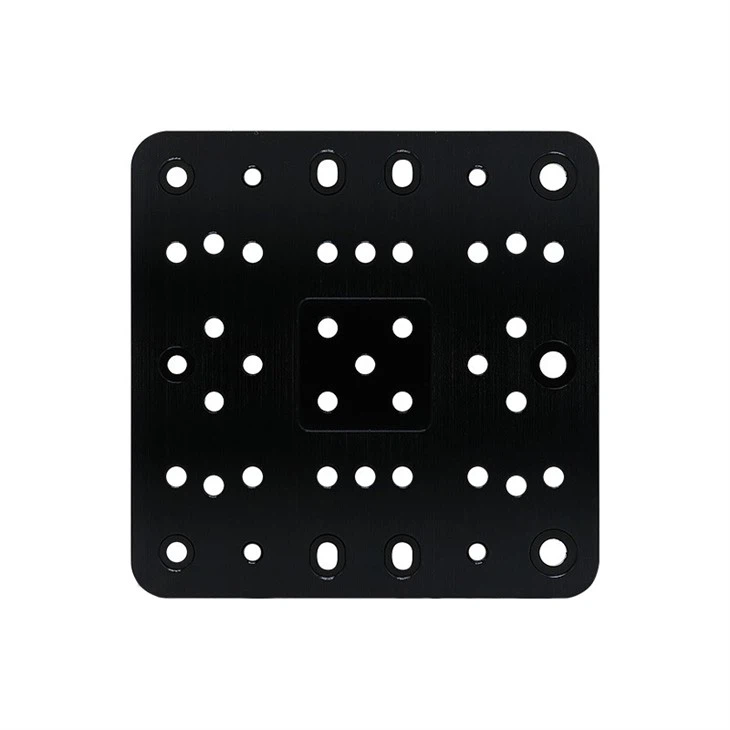

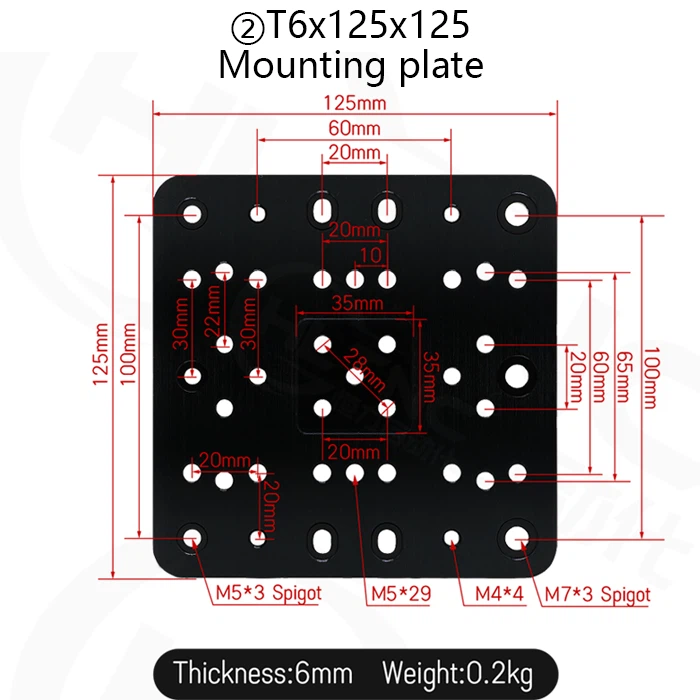

2. Size: 125x125, thickness is 6mm, mounting plate

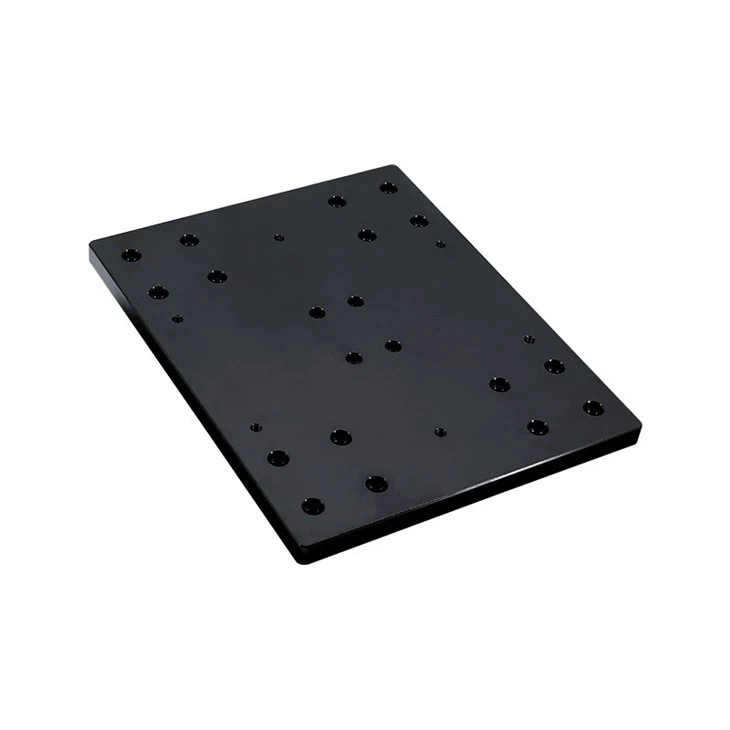

3. Size: 160*180mm, thickness is 12mm, suitable for linear guide HGH20 and ball screw SFU1605 slide table

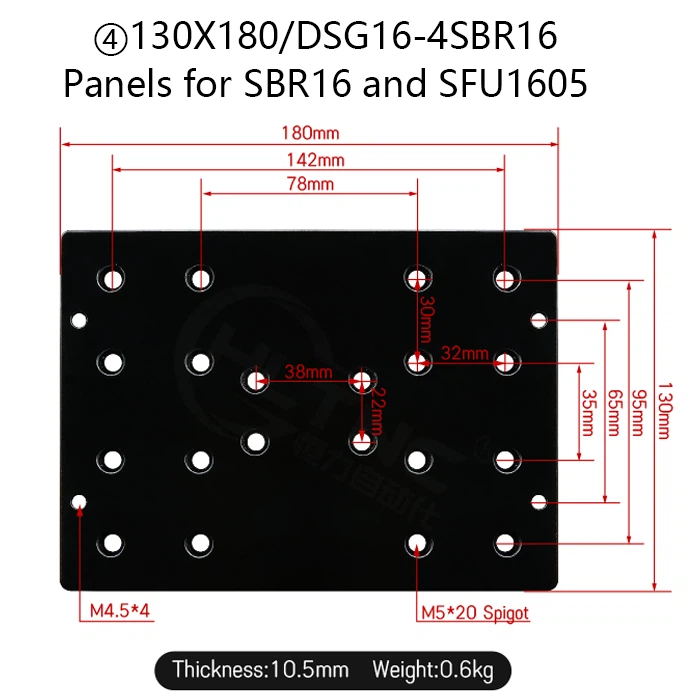

4. Size: 130*180mm, thickness 10.5mm, suitable for optical shaft SBR16 and ball screw SFU1605 slide table.

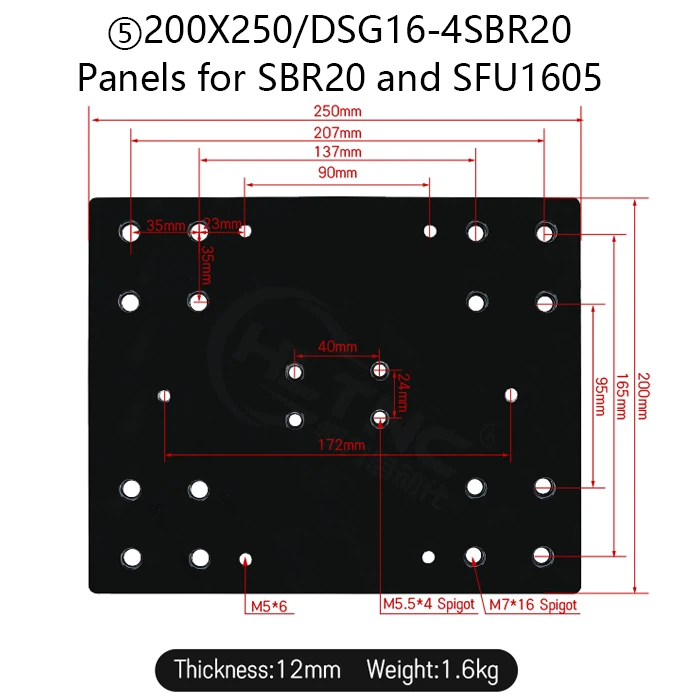

5. Size: 200*250mm, thickness is 12mm, suitable for optical shaft SBR20 and ball screw SFU1605 slide table.
