Nama 23 Stepper Motor Control
Product Introduction
This system combines three key components to deliver a full-stack control solution for stepper/servo motors:

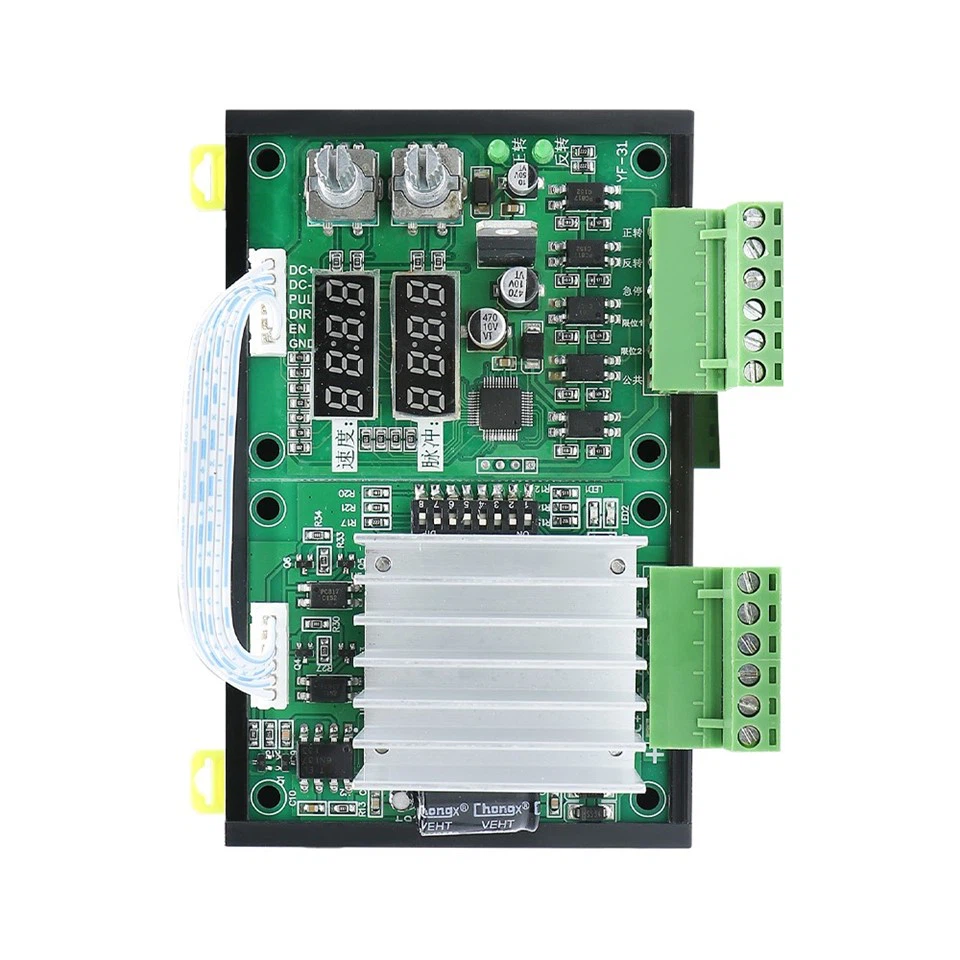

•YF-31 Drive Controller：The "brain" of the system, featuring 3A single-axis control, programmable logic (delay, cycle, limit), and compatibility with 42/57-series motors.

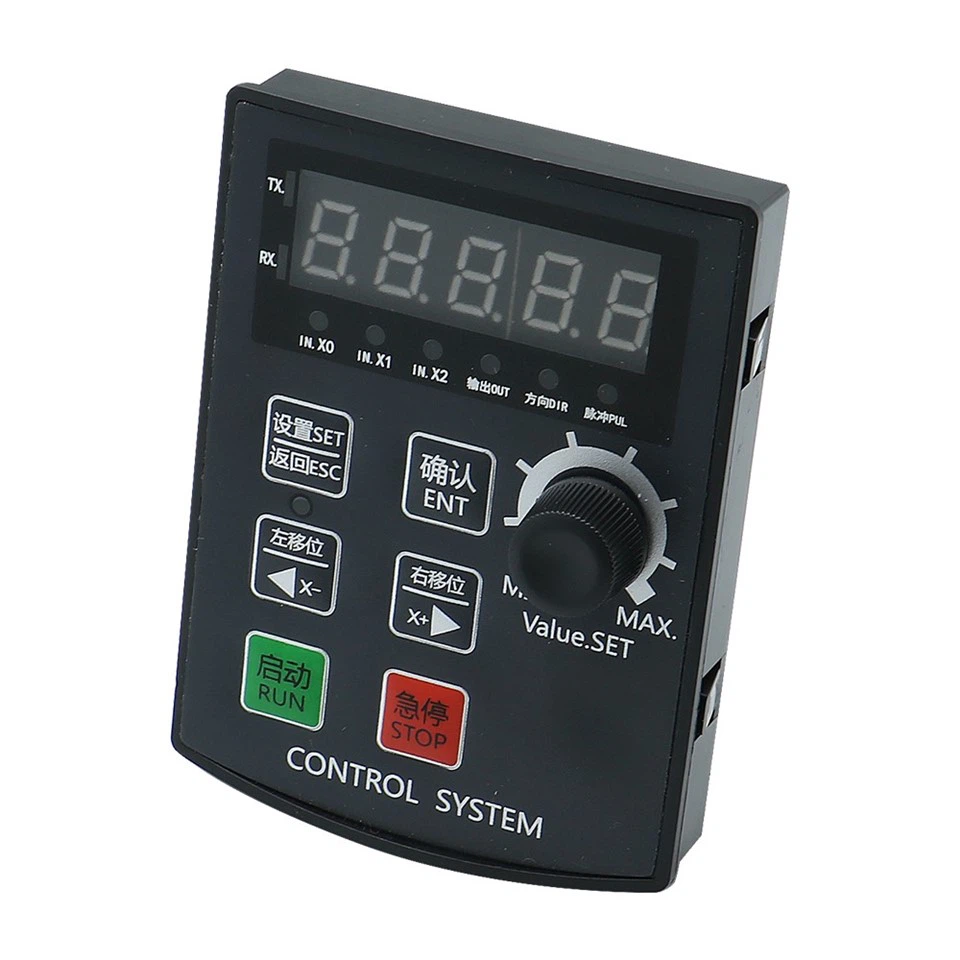

•Stepper/Servo Motor Pulse Controller (HF020)：The "control panel" with a digital display and intuitive buttons for setting pulse parameters, direction, and motion modes.
•DM542L Driver：The "power engine" supplying 1.0-4.2A peak current and 18-50VDC input, ensuring stable torque at all speeds.
Functions & Applications
Key Functions
Precision Control：Adjust speed, switch rotation directions, set delayed cycles, and enable limit protection (prevents motor overload).
Custom Programming：Create multi-stage motion profiles (e.g., fixed-length moves, reciprocating cycles) via YF-31's built-in logic.
Plug-and-Play Integration：All components are pre-wired for easy setup-reduce wiring time by 50% compared to traditional systems.
Ideal Use Cases
Automation Machines：Automatic glue dispensers, soldering robots, and small production lines (controls robotic arms, conveyors, and actuators).
CNC Equipment：Mini CNC lathes, milling machines, and engravers (ensures precise tool/workpiece positioning).
Smart Devices：Laboratory automation tools, material sorting systems, and smart home motorized doors/windows.
Technical Specifications
|
Component |
Core Parameters |
Functional Highlights |
|
YF-31 Drive Controller |
3A single-axis control, programmable (delay/cycle/limit), 42/57 motor compatibility |
Acts as the system's logic center-runs custom motion sequences without external controllers. |
|
HF020 Pulse Controller |
Digital display, MIN/MAX value setting, pulse/direction control |
Visualizes motor settings for quick debugging and parameter tuning. |
|
DM542L Driver |
18-50VDC input, 1.0-4.2A peak current, 15-level microstepping (400-25600 steps/rev) |
Delivers smooth low-speed operation and strong high-speed torque via advanced microstepping tech. |
Why Choose This System?
Cost-Effective：Eliminates the need for separate PLCs or complex wiring-save 30% on setup costs.
Reliable Performance：Built-in overvoltage, overcurrent, and overheat protection (ensures 24/7 stable operation).
User-Friendly：Intuitive interfaces on all components (no expert programming skills required).
Contact Us
Note: Specifications are subject to change for product optimization. Refer to the latest datasheet for exact details.
